Circuit Activities

Circuit Activities were managed by Merlin and Varun. The following highlights the hands-on activity and how it relates to boolean logic in Computer Science.

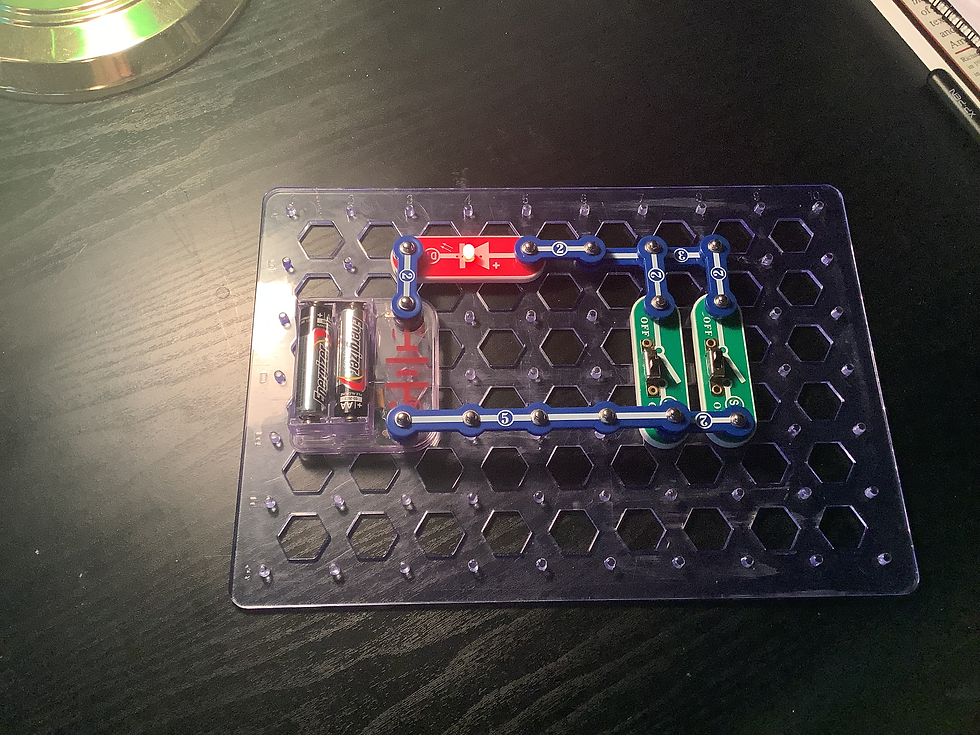

Pictures of the Snap Circuits

IMG_1236

IMG_1237

IMG_1236

1/2

Example of AND Gate with Snap Circuits

IMG_1238

IMG_1239

IMG_1240

IMG_1238

1/3

The images above demonstrate an AND Gate in Snap Circuits. In this, notice how both switches need to be turned on for the light to turn on. This is similar to the AND operator in boolean logic, which only returns "true" when both of its inputs are "true".

Example of OR Gate with Snap Circuits

IMG_1242

IMG_1243

IMG_1245

IMG_1242

1/4

The images above demonstrate an OR Gate in Snap Circuits. In this, notice how at least one of the switches needs to be turned on for the light to turn on. This is similar to the OR operator in boolean logic, which only returns "true" when at least one of its inputs is "true".
